VANCO 280552 HDMIâ„¢ EXTENDER KIT OVER 2X CATEGORY 5E CABLES

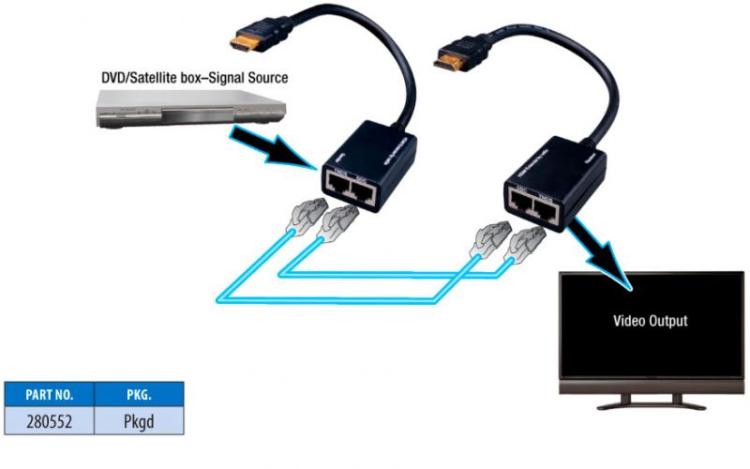

HDMI Extender by Cat 5e/6 uses two pieces of Cat 5e/6 cables to extend the HDTV display up to 100 ft (30 meters) for 1080p. It not only breaks the limitation of the HDMI cable transmission length, but also Cat 5e/6 has more flexibility and convenience in cable construction.

Both the Transmitter and the Receiver are equipped with a fixed HDMI cable that save you money and installation setup time. It is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter (not included). It also provides greater flexibility and options when integrating several home theater components.

This product offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

One pair as a full functional module, no need of setting

Cat 5e/6 cable can substitute HDMI cable to achieve long distance transmission

Follows the standard of IEEE-568B

Transmission distance can be up to 100 feet (30 meters) for 1080p using Cat 5e/6 Cable

Compact size.

HDCP compliant

Support uncompressed audio such as LPCM

Support compressed audio such as DTS Digital, Dolby Digital

(including DTS-HD and Dolby True HD)

Signal Inputs/Output

Input Video Signal 0.5 -1.0 volts p-p

Input DDC Signal 5 volts p-p (TTL)

Maximum Single Link Range 1920 X 1200, 1080P

Output Video HDMI HD

Video format supported

DTV/HDTV 1080P/1080i/720P/576P/480P/576i/480i

Transmission Distance

Cat 5e/6 cable 100 feet (30 meters) for 1080p

Resolutions (HDTV)

Interlaced (50 & 60Hz) 480i,576i,1080i

Progressive (50 & 60Hz) 480p,576p,720p,1080p

Mechanical

Power Consumption 1 Watts (max.)

Environmental

Operating Temperature 0 to +70?

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10? to +80?

Storage Humidity 5% to 95 % RH (no condensation)

Power Requirement

External Power Supply No power needed

Regulatory Approvals

Converter Unit FCC,CE,UL

Power Supply No power supply required

Accessories Adapter

AC Power Adapter No power supply required

Dimensions

Width (in)            5.25

Height (in)           9.50

Depth (in)            2.25

Weight (lb)          0.40
